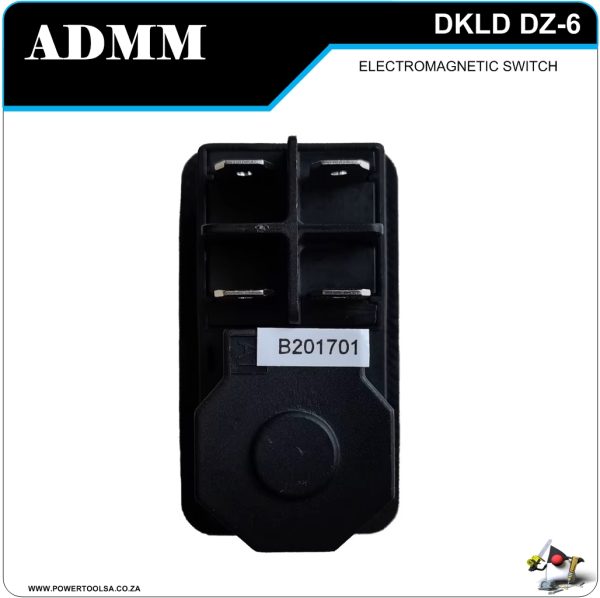

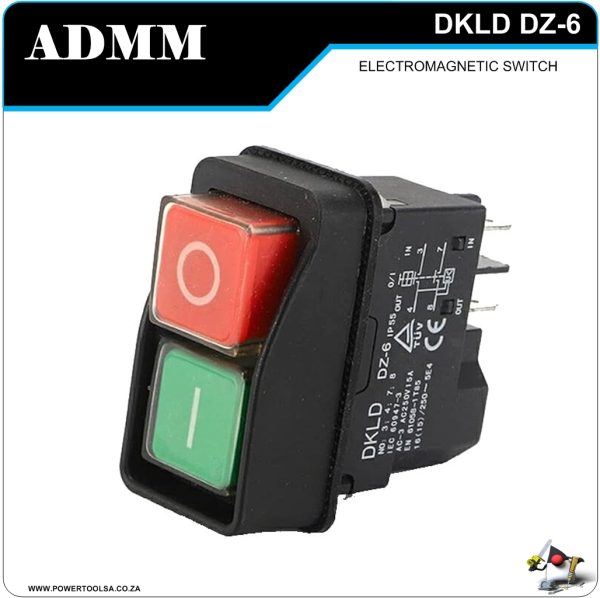

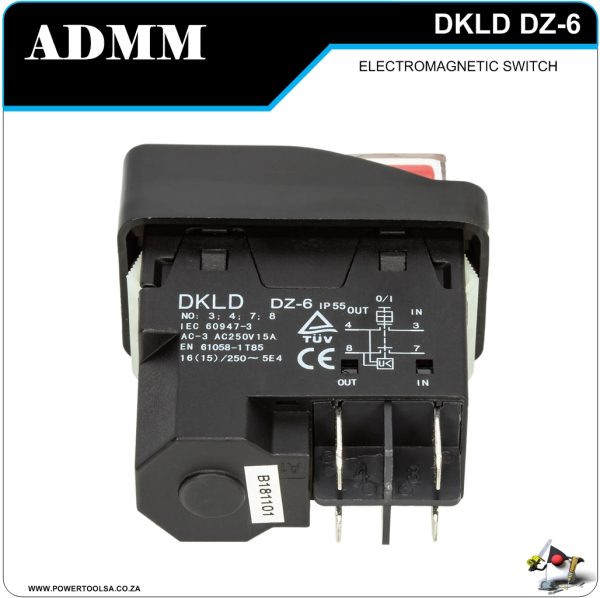

ADMM STOP/START SWITCH WITH NO-VOLT COIL 220V 15AMP – 4 PIN

The switch is the perfect switch for magnetic base drills, drill presses, table saws, bench grinders, and many other tools. The no-volt coil protects the operator from leaving the switch in the on position during power loss or, in some cases, an overload protector reset.

The Electromagnetic push-button switch has 4 pins (2 wires in and 2 wires out) with Shut-Off and Voltage Protection (no-volt coil). It is perfect for professional electrical equipment (concrete mixer), a pumping station, a wood processing (thicknesser planer) machine, or a table circular saw.

DZ-6 switch has two specifications: 4Pins and 5Pins
The internal precision coil has undervoltage and power failure protection functions.
Once the power supply is cut off or undervoltage, this switch can automatically disconnect the main power supply circuit. After the normal power supply is restored, the switch must be pressed again to turn on and work, thus avoiding abnormal startup of electrical appliances.

The DZ-6 5PIN switch can be used in combination with a thermal protection switch, and can have overload protection at the same time

* Environmental protection material: high-strength flame-retardant plastic, silver-plated tab terminal, internal high-quality brass coil, all parts meet the EU ROHS environmental protection standard

* High-end quality: from the selection of raw materials procurement, from molds to material processing, from parts to finished product assembly, strictly control every process, pay attention to every detail, and strive for perfection

* Product inspection: The product has passed dozens of tests such as temperature rise, overload, durability, pressure resistance, mechanical strength, rust prevention, fire resistance, insulation resistance, IP protection, alternating damp heat, salt spray test, etc

* Product application range: This electromagnetic switch is used to start and control the motor, and is suitable for magnetic base drills / slugger drills, woodworking machinery, bench drills, sink cutters, small machine tools, and electric drive control equipment, etc

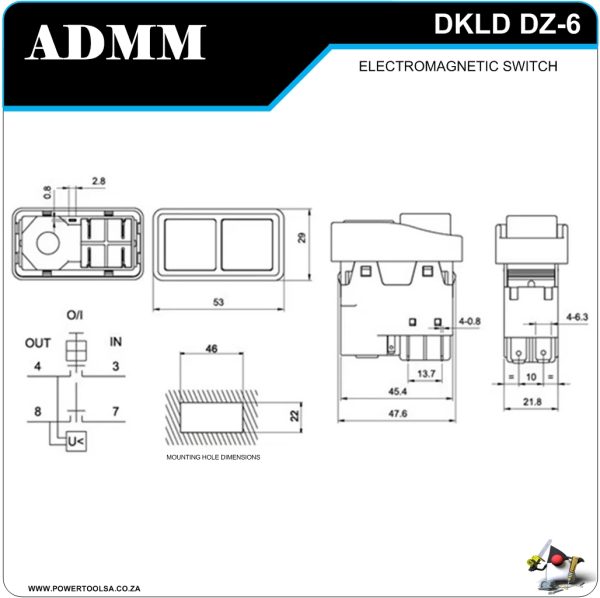

Technical Data

• Hidden body size 22*46 mm
• Magnetic coil fixation
• Base width: 22 mm.
• Base length: 46 mm.
• Base height: 42 mm.

• Package length (cm) 5.9
• Package width (cm) 2.8
• Package height (cm) 2.8
• Gross weight (kg) 0.085000
• EAN 4014915097747 / 6889100148638



The DKLD_DZ6 switch has very similar looks and functionality as the following switch brands and part numbers below.
YH02-A / AWV250 / SCY-35HD / KJD20-2

DE WALT = KJD17 4 PIN / 1004686-34 DE WALT DWE1622 / 429692-00 DE WALT DW733 / N060327
EUROBOOR = ECO30 / eco32 / ECO50 / ECO100-3 ECO100-4  and the new range of SMART30 / SMART50 / SMART100
HITACHI – HIKOKI = BM20Y-Type3
METABO = KJD17 5PIN / 34340931 METABO M100 / MAG50 /
MARTLET = MM32 / MM100 / EUROBOOR EQ35
MAC-AFRICA / ADENDORFF = WSAWLD003-033 / WSAWLD003-058.
…
